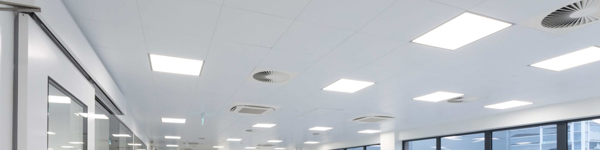

Norwood Metal Pan Ceiling
Our ceiling panels provide architects, engineers and interior planners with tremendous flexibility in design and conceptualization

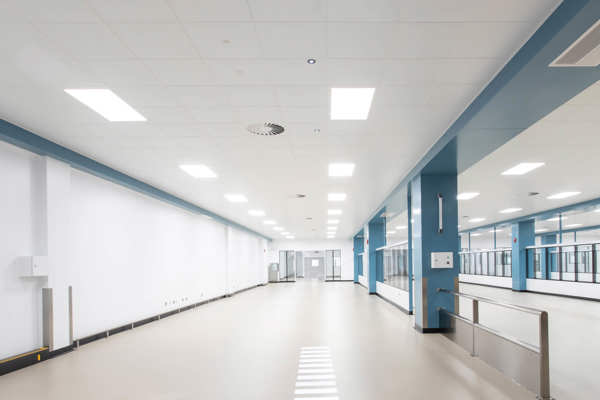

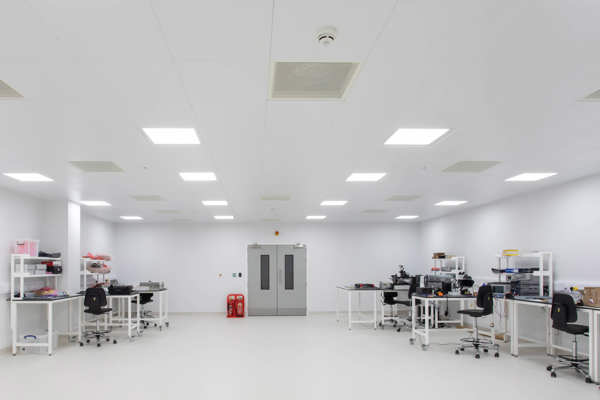

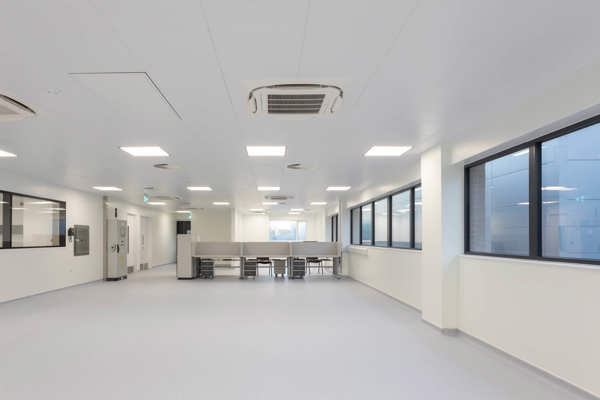

Our Metal Pan ceiling was developed for areas where a walk-on-ceiling is not required. It is a cost-effective way for us to provide a cleanroom ceiling manufactured from the same material as our panels.
The clip-in ceiling tiles can be easily removed, offering full flexibility for future maintenance.

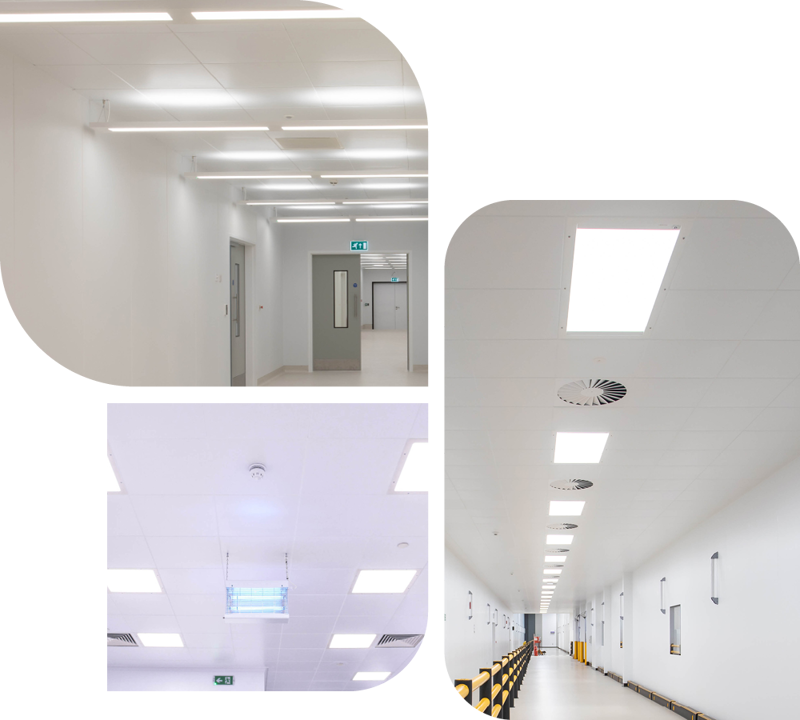

The ceiling tiles can be manufactured in various sizes, the standard range being either 600x600mm or 600x1200mm. These ceiling tiles can be modified to house bespoke products such as skylights, lighting and imagery.
We are able to manufacture the ceiling tiles with perforations and bond an acoustic baffle to the rear of the tile, reducing reverberation and improving acoustic.
Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
Ceiling Thickness
Top of spring tee to the base of the tile is 45mm
0.5mm gauge pre-coat materials
We can provide alternative thicknesses on request
Cleanroom Classification
cGMP Grade B to Unclassified ISO4 – ISO8
Partition Finish
Pre-formed steel panels with a Foodsafe Laminate on a galvanised substrate.
Various colours available, samples and data sheets can be provided on request.
Fire Ratings
Spread of Flame – Class O (BS: 476-6 & 7)
Acoustic Ratings
Acoustic inlays can be provided upon request
Thermal Rating
Thermal inlays can be provided on request
U Values
Metal-Pan 600x600mm – 5.6 W(m²K)
Details & Tolerances
Joint Treatment: silicone or flush push in dry PVC gasket
Air Leakage
Pressure – Leakage
0-45Pa – 0.00L/s
50Pa – 0.05L/s
55Pa – 0.07L/s
60Pa – 0.11L/s
Other pressures are available on request.
