Norwood Glazed Partitions

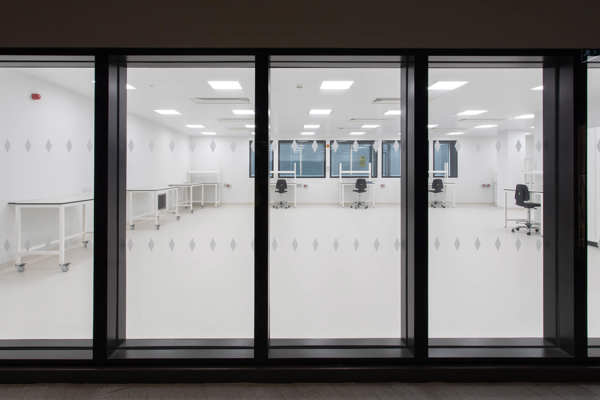

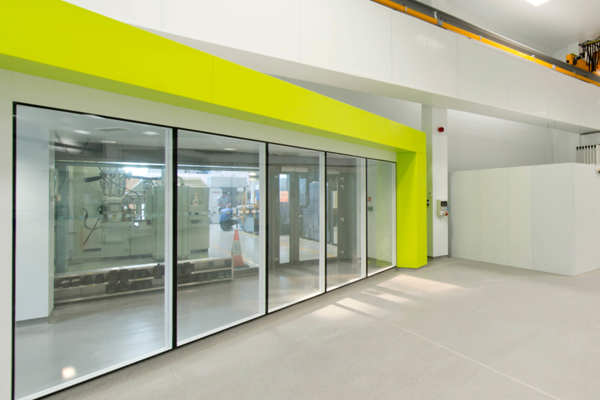

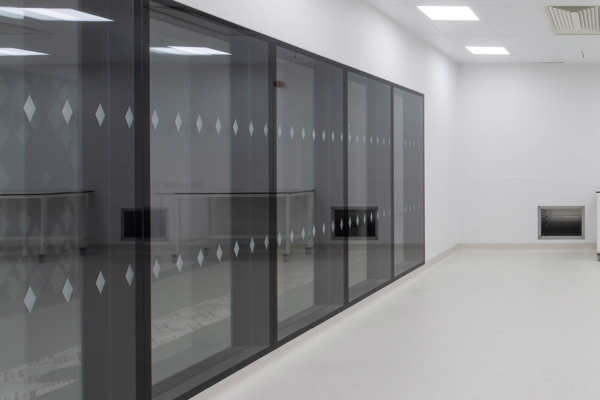

We offer several glazed partitions, designed and manufactured to offer the full flexibility of a modular partition system, allowing each design to be bespoke to the customers’ specific requirements and offers varying levels of acoustic and fire performance.
Glazed wall solutions provide an attractive alternative to solid panels. Our system is entirely flush. We can supply the glazing with various finishes such as frosting or back-painted illustrating our customer’s branding.
Additionally, our system can be provided with integrated blinds. We can provide varying levels of acoustic and fire performance.

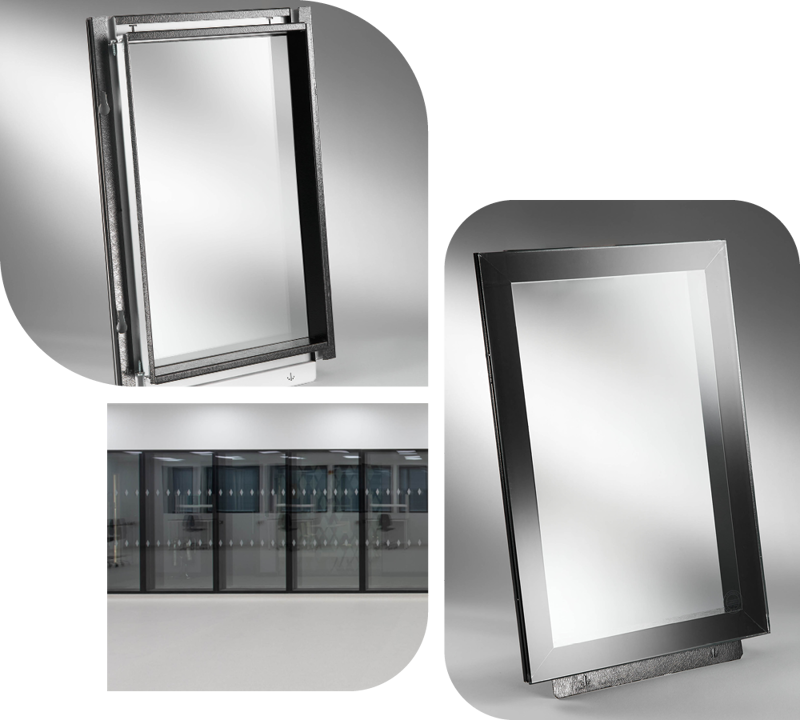

This modular double skin bi- panel system consists of prefabricated panels that friction lock to a galvanised framework for a fast, secure installation.
A telescopic head channel, adjustable base track and a range of abutment details allow connection to the building structure.
Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
Partition Thickness
Single glazed from 12mm to 25mm
Two-sided partition, minimum 60mm to various.

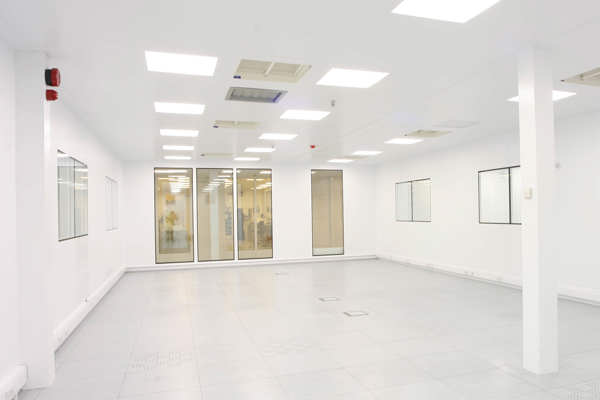

Cleanroom Classification
cGMP Grade B to Unclassified
ISO4 – ISO8
Partition Finish
A glazed flush system which can consist of various thickness of glass to achieve acoustic ratings.
Glass can be back painted to include images or company logos
Fire Ratings
Spread of Flame – Class O (BS: 476-6 & 7)
Up to 90min Fire Rating (BS: 476-22)
Acoustic Ratings
40dB to 54dB depending on glass thickness.
Assessments available for greater than 54dB
Structural Rating
– Medium Duty (BS: 5234)
– 3.0kN crowd pressure
U Values
Manufactured to clients’ specifications
Air Leakage
Pressure – Leakage
0-75Pa – 0.00L/s
80Pa – 0.03L/s
85Pa – 0.04L/s
90Pa – 0.06L/s
Other pressures are available on request.
Max Size
1250mm x 2850mm (fire rated)
2000mm x 3000mm (non-fire rated)
Details & Tolerances
Glazing frame and reveal available in multiple colours
Head Fixing: Telescopic steel section ceiling fixed (free-standing available).
Deflection Allowance: +/- 15.0mm, other tolerances available on request
Skirting or Recessed base can be provided to allow flooring to finish flush with panel face
Joint Treatment: Silicone or flush push in PVC gasket.
Case Studies
Aston Martin Cognizant Formula One Team required specialist partitioning solutions for its new state-of-the-art technology campus in Northamptonshire. Spanning approximately 300,000 sq ft across multiple buildings, the development brings together design, manufacturing, testing, logistics and staff facilities to support the team's Formula One operations.
