Norwood Mediline Partition System
Tailored demountable and relocatable steel partitions for sophisticated and complex environments
The Mediline system is designed and manufactured to offer the full flexibility of a modular solution, allowing each design to be tailormade to our customers’ specific requirements.

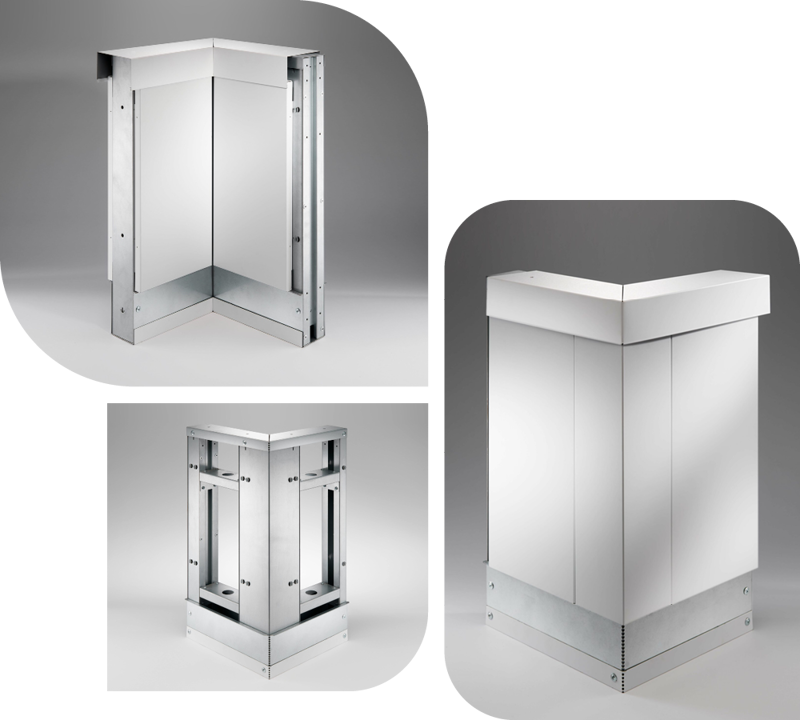

Our fully demountable double skin bi-panel system consists of prefabricated panels that friction lock to a galvanised framework for a fast, secure installation.
A telescopic head channel, adjustable base track and a range of abutment details allow connection to the building structure. The system is entirely flush while containing all power and data within the partition void.
The panels can be easily removed to provide access to the panel void for future maintenance. We can provide the system in a range of colours and finishes. Our customers can choose from industrial steel, sophisticated wood effect, or even stainless steel.
Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
Partition Thickness
Two-sided partition, from 60mm thick to various thicknesses

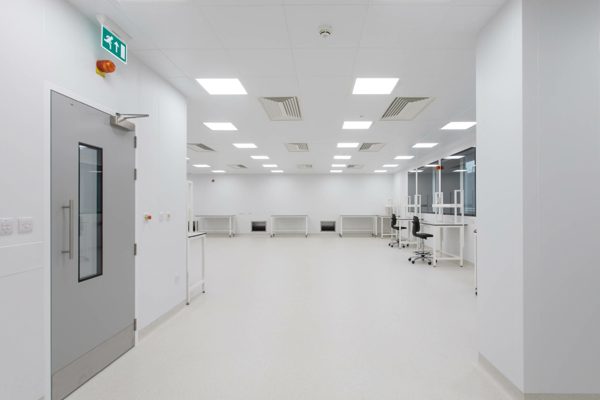

Cleanroom Classification
cGMP Grade B to Unclassified ISO4 – ISO8
Partition Finish
Pre-formed steel panels with a Foodsafe laminate on a galvanised substrate, with a bonded backing of plasterboard.
Various colours available, samples and data sheets can be provided on request.
Fire Ratings
Spread of Flame – Class O (BS: 476-6 & 7)
Up to 120min Fire Rating (BS: 476-22)
Acoustic Ratings
40dB to 54dB depending on insulation type
Structural Rating
– Medium Duty (BS: 5234)
– 3.0kN crowd pressure
U Values
Manufactured to clients’ specifications
Air Leakage
Pressure – Leakage
0-75Pa – 0.00L/s
80Pa – 0.03L/s
85Pa – 0.04L/s
90Pa – 0.06L/s
Other pressures are available on request.
Details & Tolerances
No core materials to panel void unless fire rated
Head Fixing: Telescopic steel section ceiling fixed (free-standing available).
Deflection Allowance: +/- 15.0mm, other tolerances available on request
Skirting or Recessed base can be provided to allow flooring to finish flush with panel face
Joint Treatment: Silicone or flush push in PVC gasket.
Product Testimonial
"We were highly impressed by the versatility of the Norwood's partition system, which was initially recommended by our design architect.
Since installation, a number of revisions to the partitioning requirements have been made. Virtually all components on the systems are interchangeable and reusable which allowed for a quick and easy re-configuration as needed.
The ease of this systems has been of great benefit."
Steve Rogers - Fugro
Case Studies

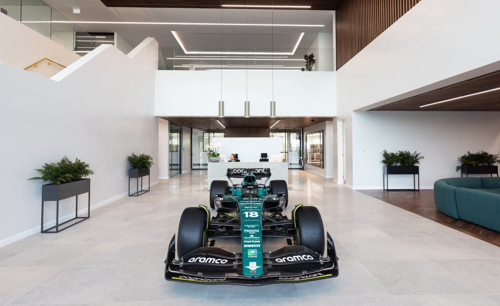

Aston Martin Cognizant Formula One Team required specialist partitioning solutions for its new state-of-the-art technology campus in Northamptonshire. Spanning approximately 300,000 sq ft across multiple buildings, the development brings together design, manufacturing, testing, logistics and staff facilities to support the team's Formula One operations.
