Modular Fertility Clinic, Avenues
Norwood Timberline Partition System
Tailored demountable timber and fabric partitions for comfortable and luxurious environments.
We offer a range of innovative demountable timber and fabric panels that friction lock to our galvanised framework for a fast and secure installation. A telescopic head channel, adjustable base track and a range of abutment details allow connection to the building structure.
The panels can be used to create agile, compliant and stylish spaces, bringing warmth and added texture to the built environment.
The Timberline comprises customizable panels with different textures and finishes, including timber, anti-bacterial fabrics, graphics, folding and living walls.
Modular components deliver sustainability benefits and improved occupant experience, enabling rapid lead times as well as the flexibility to reconfigure your spaces in future. The system contains all power and data within the partition void. The panels can be easily removed to provide access to the void behind for maintenance.
Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
Norwood Timberline Partitions
Norwood offer a range of innovative demountable timber and fabric panels which can be used to create agile, compliant and stylish spaces, bringing warmth and added texture to the built environment.
The Timberline comprises customizable panels with different textures and finishes, including timber, anti-bacterial fabrics, graphics, folding and living walls.
Partition Thickness
Two-sided partition, from 100mm thick to various thicknesses
One-sided partition from 50mm thick to various thicknesses
Compliance
VOC Emissions – compliant with the SINTEF emission requirements according to EN 16516:2017
Indoor Air Quality Certified to SCS-EC10.3-2014v.4.1
Partition Finish
Pre-formed steel frame mounted with various finishes, including:
- Timber Panels
- Living Walls
- Antibacterial Fabric Walls
- Glass
- Graphics
Various samples and data sheets can be provided on request.
Fire Ratings
Spread of Flame – Class O (BS: 476-6 & 7)
Up to 90min Fire Rating (BS: 476-22)*
*Depending on Finishes
Acoustic Ratings
40dB to 57dB depending on insulation type
U Values
Manufactured to clients’ specifications
Air Leakage
Pressure – Leakage
0-75Pa – 0.00L/s
80Pa – 0.03L/s
85Pa – 0.04L/s
90Pa – 0.06L/s
Other pressures are available on request.
Details & Tolerances
No core materials to panel void unless fire rated
Head Fixing: Telescopic steel section ceiling fixed (free-standing available).
Deflection Allowance: +/- 15.0mm, other tolerances available on request
Skirting or Recessed base can be provided to allow flooring to finish flush with panel face
Case Studies

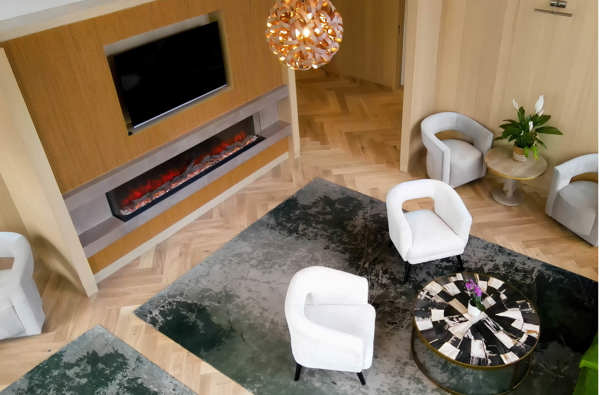

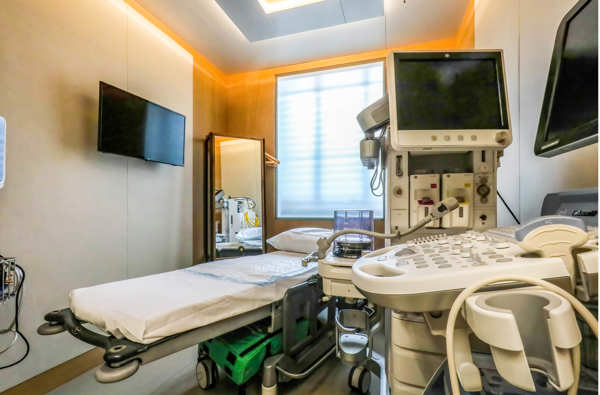

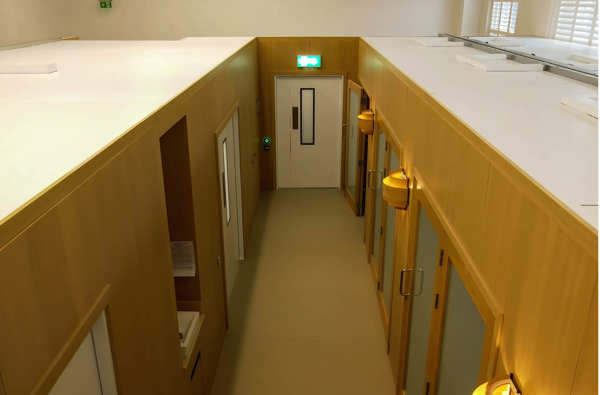

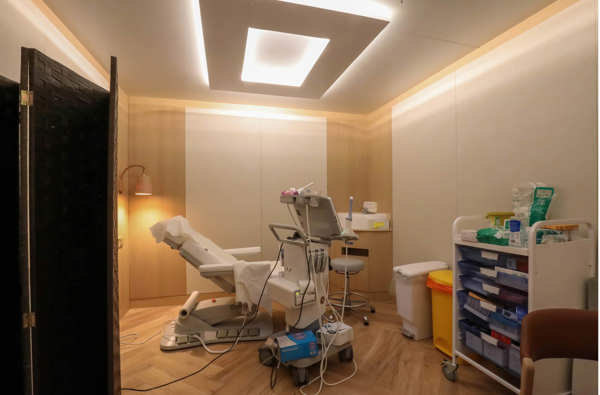

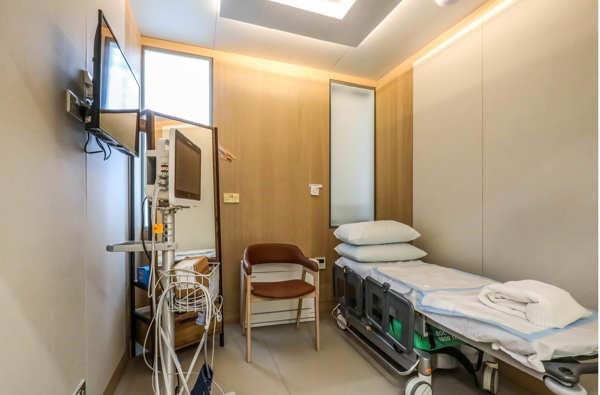

Avenues required a new fertility clinic in London that combined the highest standards of healthcare functionality, safety and compliance with a warm, welcoming and patient-focused environment.
