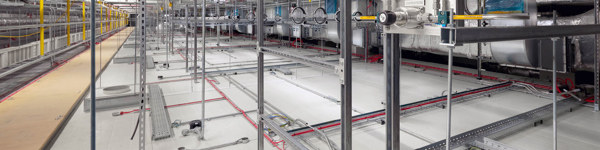

Norwood MediCeil Walk on Ceiling

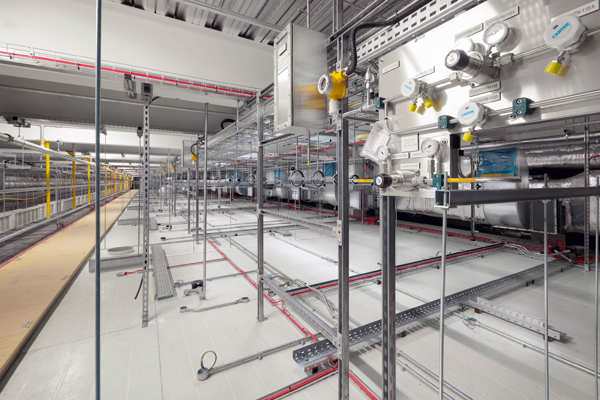

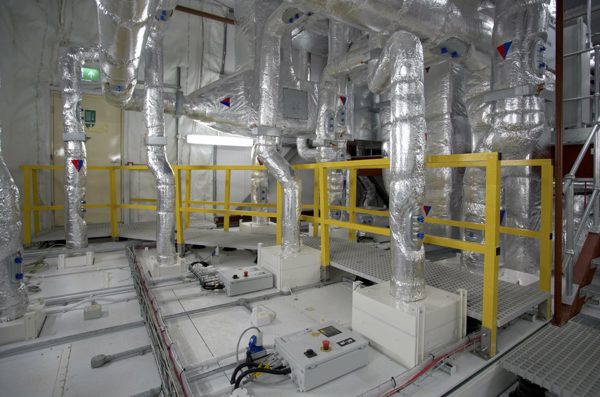

Our walk-on-ceiling offers full flexibility and the ultimate platform for maintenance of services from above
Our Walk-on-Ceiling features prefabricated cut-outs tailored to our client’s requirements, accommodating filters, lights and grills without affecting the loading capacity of the system.
All our systems have been subjected to static and impact load tests, providing a safe working load of 250kg. The Walk-on Ceiling is ideal for several different environments, from cleanrooms and high specification manufacturing plants to education classrooms.

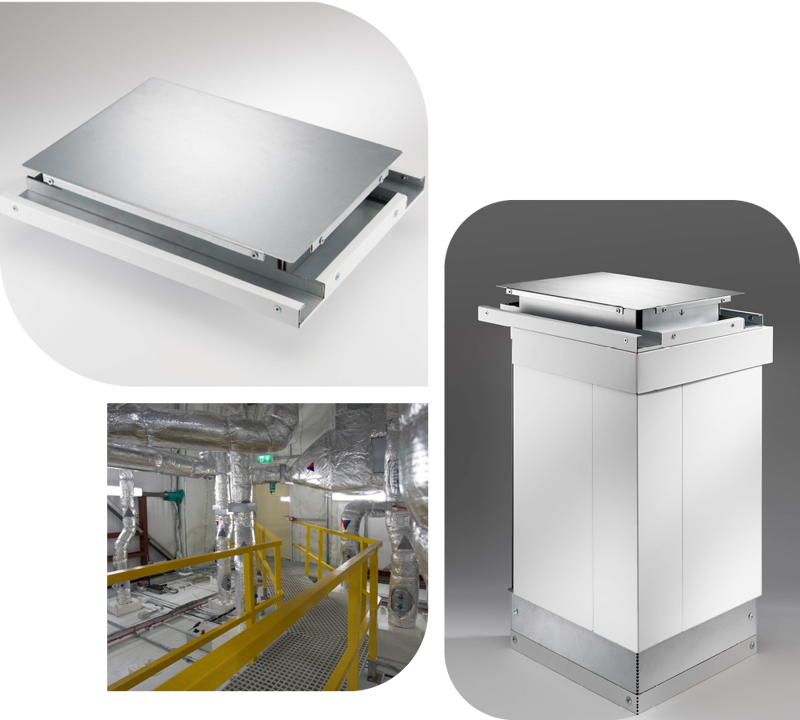

Our Walk-on Ceiling panels were developed for facilities requiring full accessibility for maintenance of services from above. Our system is designed to be fully demountable, allowing the removal of a ceiling plank without affecting other areas. The system is entirely flush and enables the integration of bespoke products such as skylights, lighting, acoustic baffles and grilles.
We can provide the system in a range of colours and finishes. Our customers can choose from industrial steel, sophisticated wood effect, or even stainless steel. Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
Ceiling Thickness
60mm – Span up to 4000mm unsupported
150mm – Span up to 7000mm unsupported
Infinite spans available if hung from structure above
Glazing
Available on the 150mm system, flush skylight available in various sizes.
Installed flush with ceiling skins.
Cleanroom Classification
cGMP Grade B to Unclassified ISO4 – ISO8
Partition Finish
Pre-formed steel panels with a Foodsafe Laminate on a galvanised substrate.
Various colours available, samples and data sheets can be provided on request.
Fire Ratings
Spread of Flame – Class O (BS: 476-6 & 7)
Acoustic Ratings
Acoustic inlays can be provided upon request
U Values
Manufactured to clients’ specifications
Structural Rating
Safe working load for 60mm and 150 mm is 250kg per plank ceiling
Structural test reports are available on request
Details & Tolerances
We can provide an Aluminium or Paper/ Cardboard honeycomb cores.
Unsupported or supported from above.
Test report available for ceiling deflections.
Standard module widths are 1000mm but panels can be tailored to suit our client’s specification
Joint Treatment: silicone or flush push in dry PVC gasket.
Air Leakage
Pressure – Leakage
0-40Pa – 0.00L/s
45Pa – 0.05L/s
50Pa – 0.11L/s
55Pa – 0.14L/s
Other pressures are available on request.
Case Studies

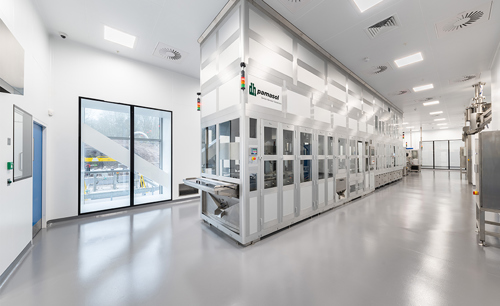

We completed £ Multimillion D&B project to create a state-of-the art inhaler manufacturing cleanroom facility for Bespak, at their Holmes Chapel, UK, site.
